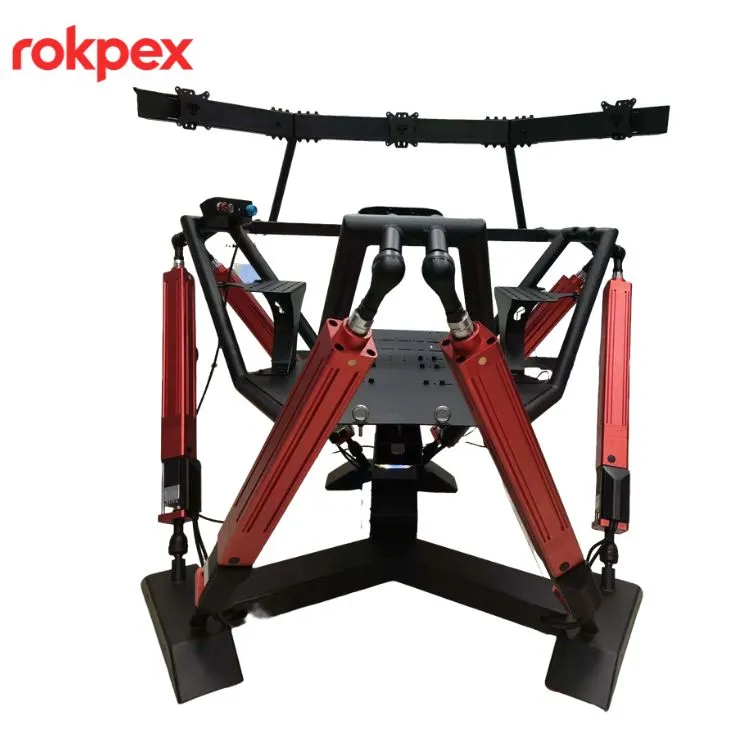

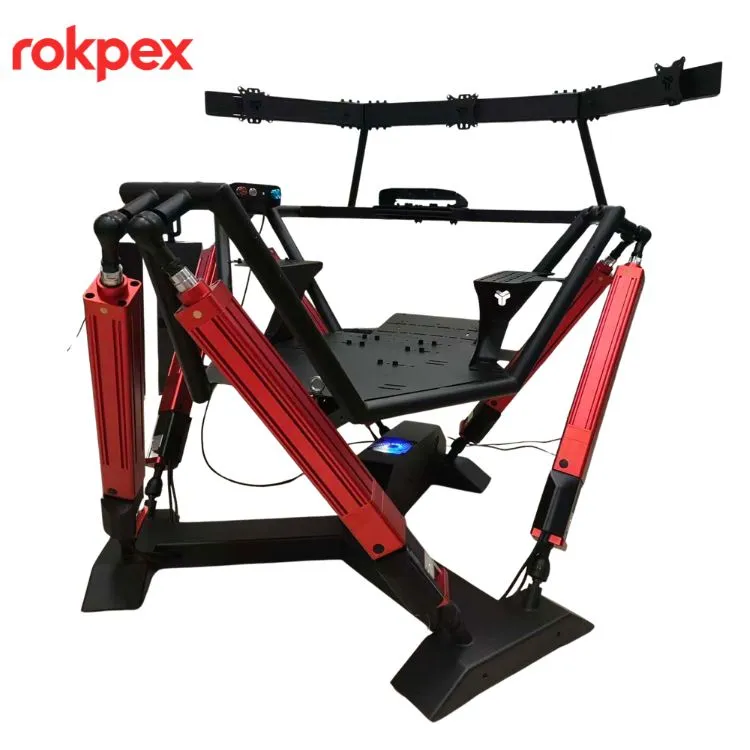

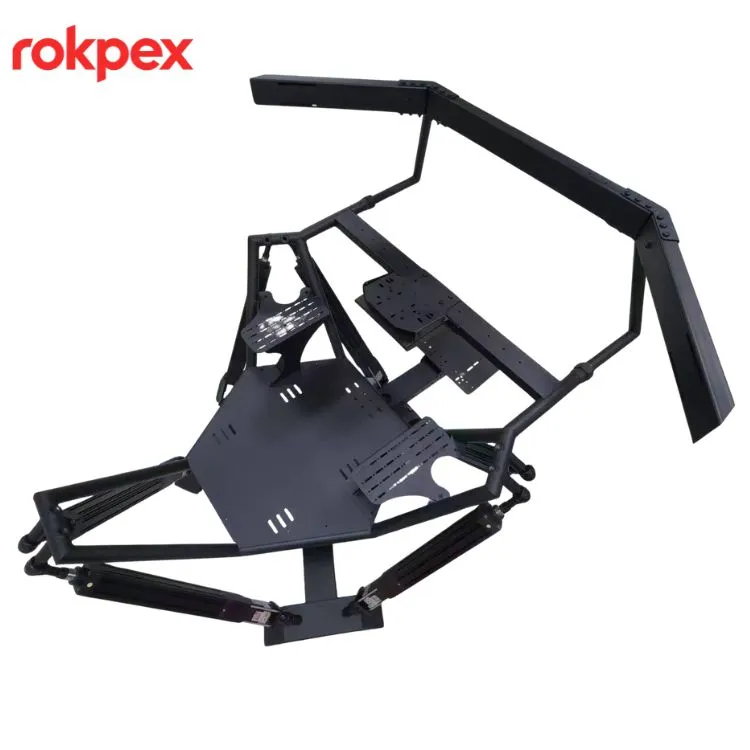

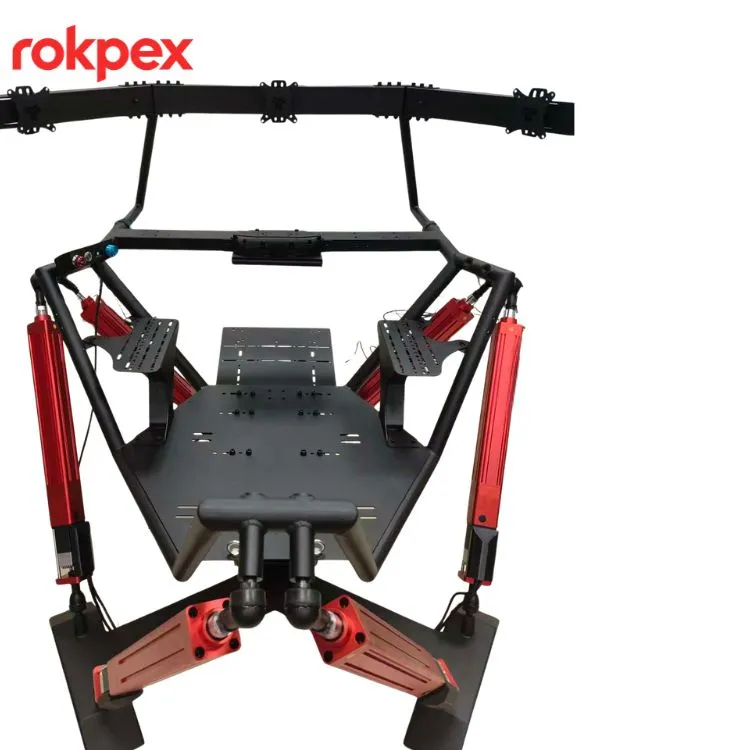

6DOF platform with max speed 300mm/s
6DOF motion parameters:
– Forward/Backward Movement Range: ±27 cm
– Pitch Angle Range: ±18 degrees °
– Roll Angle Range: ±18 degrees °
– Lateral Movement Range: ±27 cm
– Vertical Movement Range: 30 cm
– Yaw Angle Range: ±32 °
– Load capacity 300kg
-Maximum speed 300mm/s
-Supports heights up to 2.2m
Product Details
| Voltage and power | 220V/110V~2500W |
|---|---|
| Degrees of Freedom | 6DOF |
| Product size | L1715*W1569*H1258mm |
| Load Capacity | 300KG |
| Response Time | ≤15ms |
| Surge | ±270mm |
| Sway | ±270mm |
| Heave | 300mm vertical |
| Pitch | ±18 ° |
| Roll | ±18 ° |
| Yaw | ±32° |
| Max speed | 300mm/s |
